SPECIFICATION
|
Par NO Parameter |
LY-FL45020XX |
LY-FL45030XX |
|
Input voltage |
AC100V～277V 50/60HZ / DC12-24V |
|
|
PF |
＞0.95 |
|
|
THD |
<15% |
|
|
POWER (W) |
20 |
30 |
|
Luminous flux (lm) |
3000 |
4380 |
|
Luminous efficiency (lm/w) |
＞150 |
＞146 |
|
Chip Brand |
LUXEON 3030 / LEYOND 2835 |
|
|
LED Quantity (PCS) |
48 |
|
|
Beam Angle |
30° / 60°/90°/120° |
|
|
CRI |
70 / 80 |
|
|
Color Temperature |
Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
|
|
LED Driver |
LEYOND DRIVER |
|
|
Lifespan(h) |
＞50000 |
|
|
IP Rating / IK |
IP65 / IK08 |
|
|
Material |
ADC 12+ Glass |
|
|
Dimmer |
PWM / 1-10V / DALI |
|
|
Light body color |
Black / White |
|
|
working environment |
Temperature -20 to +45°C, Relative Humidity 20~90% |
|
|
Storage environment |
Temperature -20 to +60°C, Relative Humidity 5~95% |
|
|
Size (mm) |
L224*W173*H37mm (L8.82*W6.81*H1.46Inch) |
|
|
Net Weigh (kg) |
1.1 |
|
|
Irradiated Area (m2) |
4-10 |
|
|
Warranty (Years) |
3 |
|
APPLICATION
Suitable for stadiums,sidewalk, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
FEATURES
1. The shell adopts die-casting integral molding, which has higher safety and longer life;
2. The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
3. The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
4. Using Philips 3030 lamp beads, the luminous efficiency is as high as 145lm/w;
5. The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;
6. Waterproof and dustproof grade: IP65, protection grade IK08;

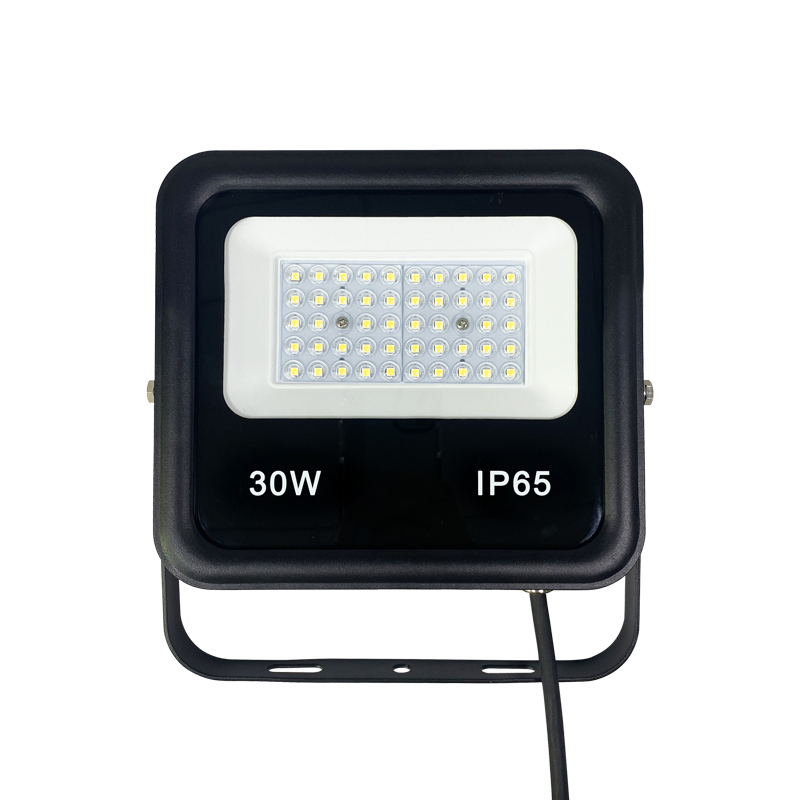

30W LED Flood Light
