OUTLOOK
SPECIFICATION
|
Parameter/Par No |
LY-ST80020XX |
LY-ST80030XX |
LY-ST80040XX |
LY-ST80050XX |
LY-ST80060XX |
|
Input voltage |
AC100V～277V 50/60HZ / DC12-24V |
||||
|
POWER(W) |
20W | 30W | 40W | 50W | 60W |
|
Luminous flux(lm) |
3000 | 4440 | 5800 | 7150 | 8400 |
|
Chip Brand |
LUXEON 3030 |
||||
|
LED Quantity (pcs) |
72 | ||||
|
Beam Angle |
TYPE III 150*80 |
||||
|
CRI |
70/80 |
||||
|
Color Temperature |
Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
||||
|
Luminous efficiency(lm/w) |
＞150 |
＞148 |
＞145 |
＞143 |
＞140 |
|
LED Driver |
MEAN WELL / INVENTRONICS |
||||
|
Lifespan(h) |
＞50000 |
||||
|
IP Rating / IK |
IP66 / IK10 |
||||
|
Material |
ADC 12 |
||||
|
Dimmable |
1-10V/DALI |
||||
|
Light body color |
Black/Grey |
||||
|
working environment |
Temperature -20 to +45°C, Relative Humidity 20~90% |
||||
|
Storage environment |
Temperature -20 to +60°C, Relative Humidity 5~95% |
||||
|
Size(mm) |
L580*W180*H106mm (L22.83*W7.09*H4.17Inch) |
||||
|
Net Weigh(kg) |
3.5 |
||||
|
Package Size(mm) |
L614*W222*H162mm (L24.17*W8.74*H6.38inch) |
||||
|
Package Quantity(Pcs) |
1 |
||||
|
Gross Weigh(kg) |
4.3 |
||||
|
Installation height(m) |
4-8 |
||||
APPLICATION
Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,sidewalk, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
FEATURES
1. The shell adopts die-casting integral molding, which has higher safety and longer life.
2. The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
3. The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
4. Using Philips 3030 lamp beads, the luminous efficiency is as high as 150lm/w
5. The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;
6. The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation
7. Waterproof and dustproof grade: IP66, protection grade IK10;
8. The product is equipped with other more optional functions: light controller, circuit breaker,single lamp controller, anti-falling sling, etc.

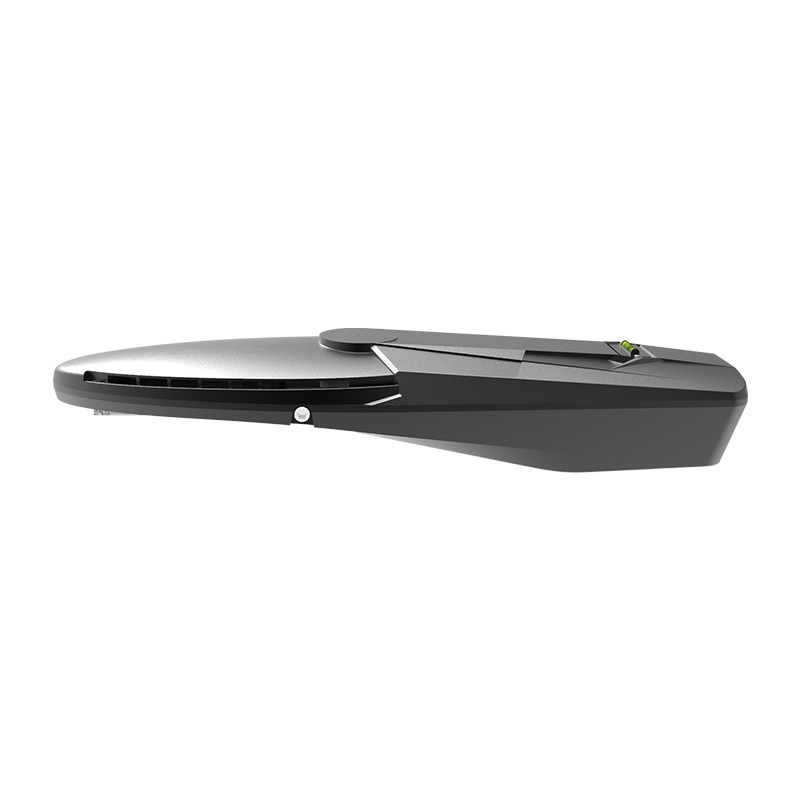

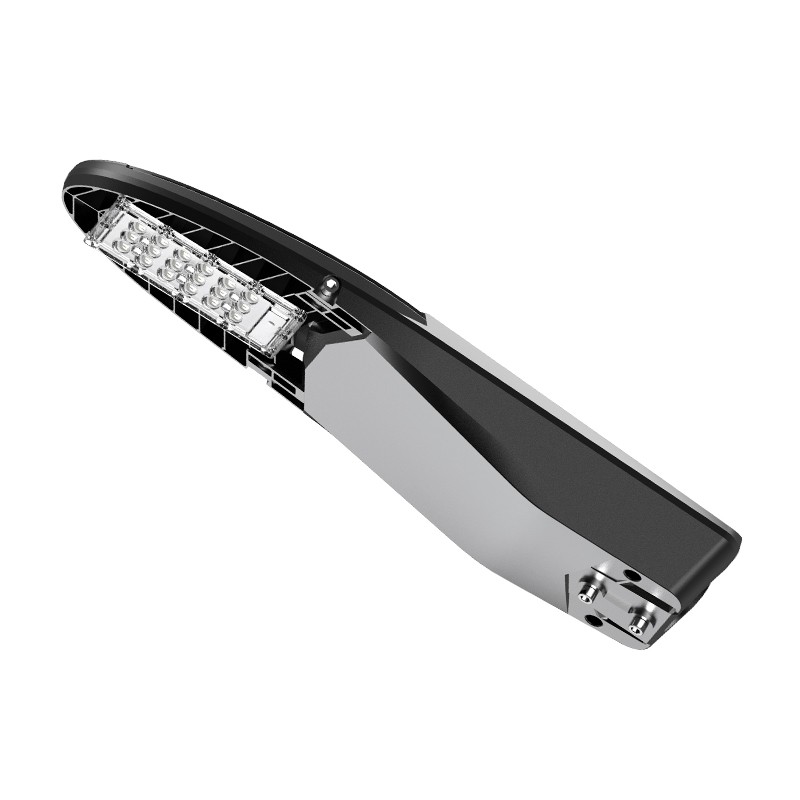

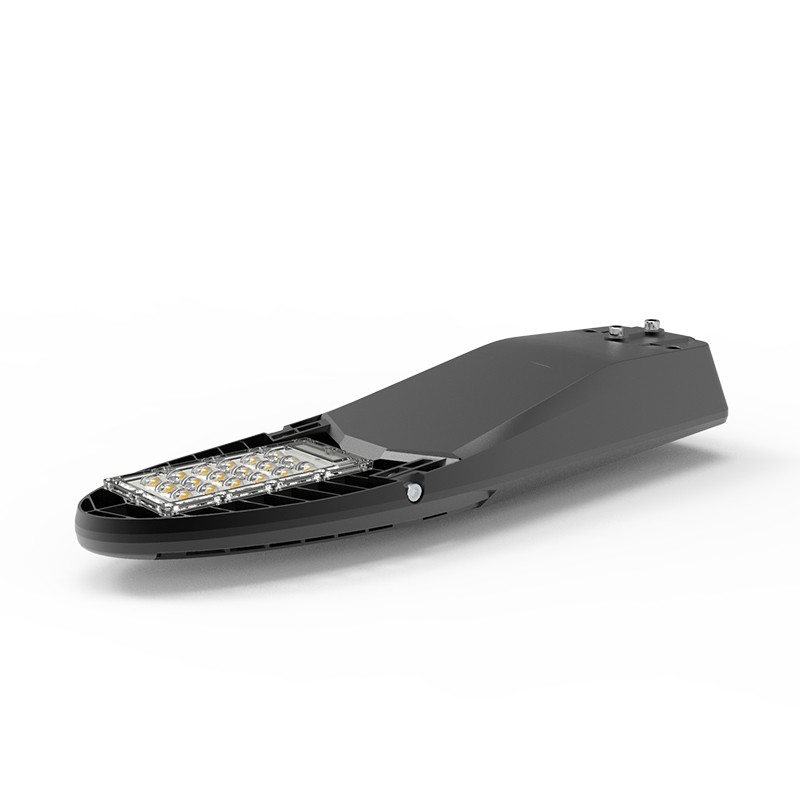

40W PETREL LED STREET LIGHT
