SPECIFICATION










Parameter/Par No

LY-ST30020PW

LY-ST30020NW

LY- ST30020WW

Battery

18650 LiFePO4 12.8V 16 Ah

Beam angle

150x65°

Pole diameter

60MM

Light output

20W

20W 20W

Luminous flux(lm)

2900 2750 2600

Chip Brand

LUXEON 5050

Solar panel

20W /18V  monocrystalline silicon

CRI

>70

Color Temperature

Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K

Operating time

Full power >12 hours ,Intelligent mode 3-4 days

Control Mode

Light Control + Sensor

Material

Die Casting Aluminum

Luminous efficiency(lm/w)

>160

Lifespan(hrs)

>50000

IP Rating

IP66

Installation height

4~8M

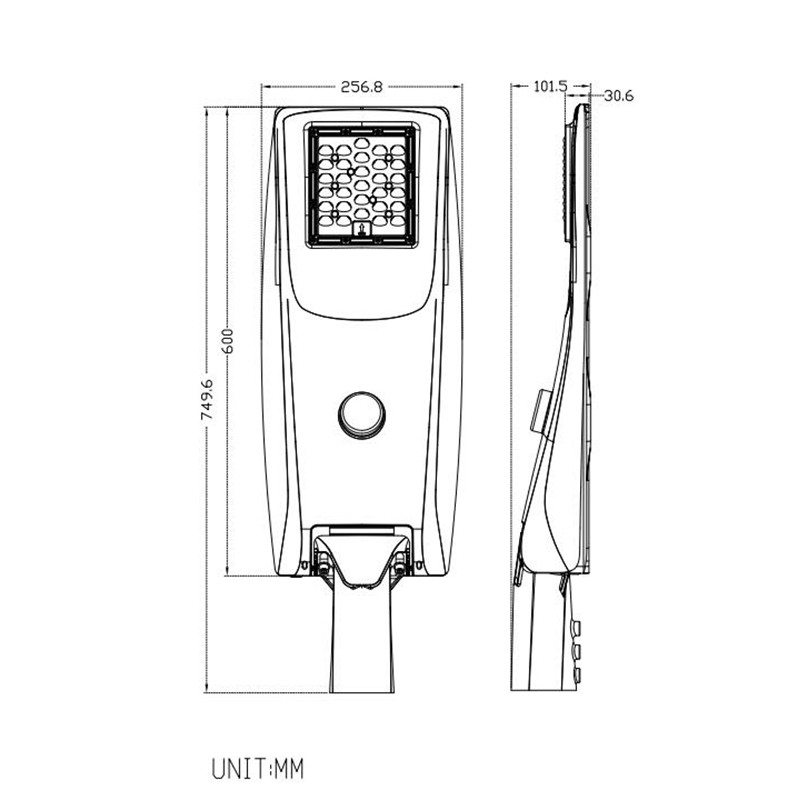

Size(mm)

750x257x102

Net Weigh(kg)

6.9

Package Size(mm)

800*295*155

Package Quantity(Pcs)

1

Gross Weigh(kg)

7.5











APPLICATION








Suitable for the street lighting; sidewalk lighting;roadway lighting; fence lighting; pathway lighting; campus lighting; park lighting; garden lighting;ramp lighting;boat dock lighting; remote area lighting;farm & ranch lighting.







FEATURES








1>The intergration of design ,no cable,the installation is very convenient.

2>The Mono-crystalline solar panel,LED lights,lithium battery,intelligent controller integrated Aluminum  Alloy shell.

3>It used of lithium iron phosphate battery,fight the high temperature,keep long life.

4>When the products with optically controlled microwave induction infrared sensor, automatic adjustment of intelligent power on rainy days, extend rainy days.

5>It used of alloy material as the main structure,with good rust prevention,corrosion protection.

6>The wireless remote control setting device,adjustable lighting time ,lighting power ,automatic detection of battery voltage,read light power parameters,a human body induction function,as long as people go through when full power lighting,no automatic power down alf, restore energy saving mode.

7>time control + light sensor control+ motion sensor control

8>Motion and light sensor built in:solar street light goes on at dusk at 50% brightness. Can go from 50% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge. 1、Bright: motion activates for lighting when motion is detected for security light and to save battery; 2、DIM: 50% lighting for saving power when no motion; 3、Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according to client's demands).

20W SUNPRO Solar LED Street Light

HOME  ꄲ  Solar LED Street Light  ꄲ  20W SUNPRO Solar LED Street Light
